Magnetic Rod and Pot Magnets

Strong Holding

Magnetic Rod and Pot Magnets

Magnetic Rod and Pot Magnets are compact, high-performance magnetic solutions designed for secure holding, positioning, lifting, and mounting applications. Their strong magnetic force and durable construction make them suitable for industrial equipment, fixtures, displays, tools, automation systems, and various engineering applications where reliable magnetic attachment is required.

Their versatile design allows easy integration into both simple and complex systems, providing dependable performance even in demanding environments. Available in different sizes and magnetic strengths, they offer flexibility for customized applications across manufacturing, fabrication, material handling, and industrial assembly.

Magnetic Rod

  • Material: SS304 / SS316
  • Magnet Type: Neodymium (NdFeB)
  • Surface Gauss:
  • 4000 – 8000 Gauss
  • 8,000–12,000 Gauss
  • (custom options available)
  • Diameter: 15mm, 20 mm, 25 mm, 32 mm
  • Length: 100 mm to 1200 mm (custom sizes available)
  • Working Temperature: Standard up to 80°C
  •  (higher temperature grades available

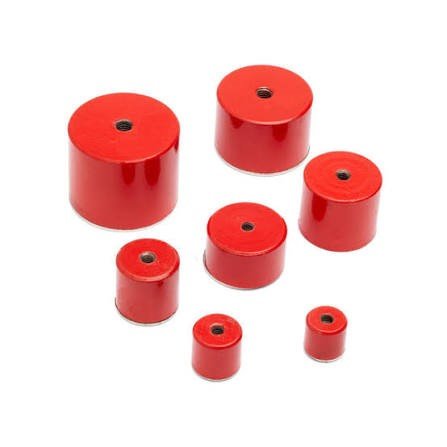

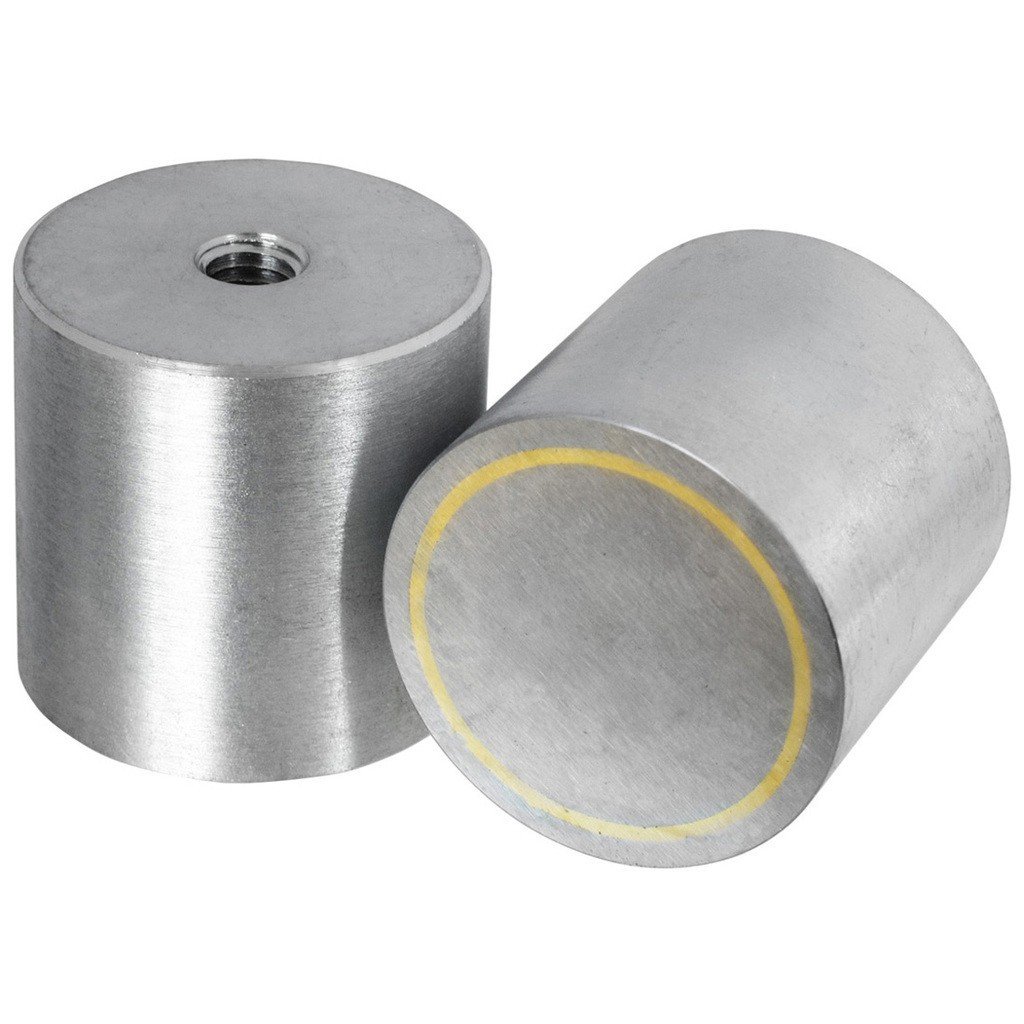

Pot Magnet

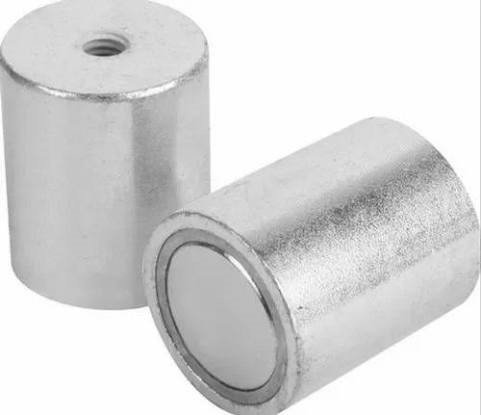

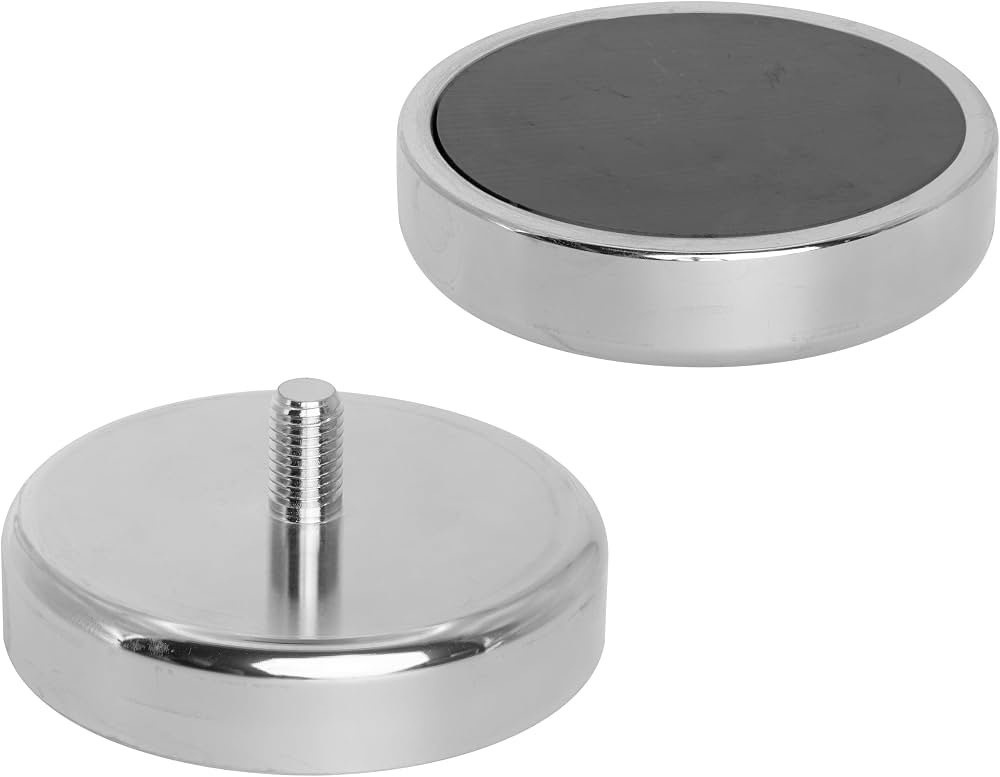

  • Magnet Type: Neodymium / Ferrite / AlNiCo / SmCo
  • Housing Material: Mild Steel with Nickel Coating
  • Mounting Options:
    • Internal Thread
    • External Thread
    • Countersunk Hole
    • Hook
    • Eye Bolt
  • Diameter: 10 mm to 100 mm
  • Holding Force: 2 kg to 200+ kg (depending on size)
